Electrical Characteristics

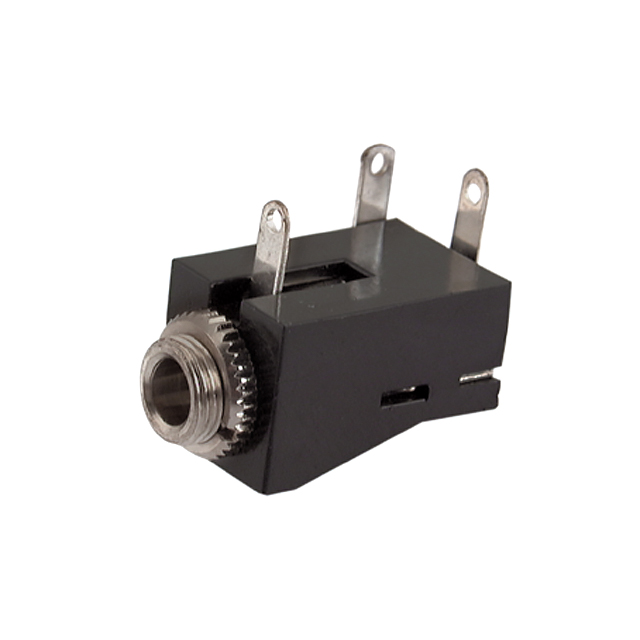

Specifications
·Gender: Female
·No. of poles: 3
·Pin diameter: 3.5 mm
·Current rating: 0.5A
·Voltage rating: 30V DC
·Orientation: Right angle
·Mounting type: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 250VDC
·Withstand voltage: 500VAC 10mA for 5 second (terminal-terminal)
·Electronical life: 2,000 cycles
·Operating force: 3~25N
·Ambient temperature: -25°C to +85°C
·Termination: Solder
