Electrical Characteristics

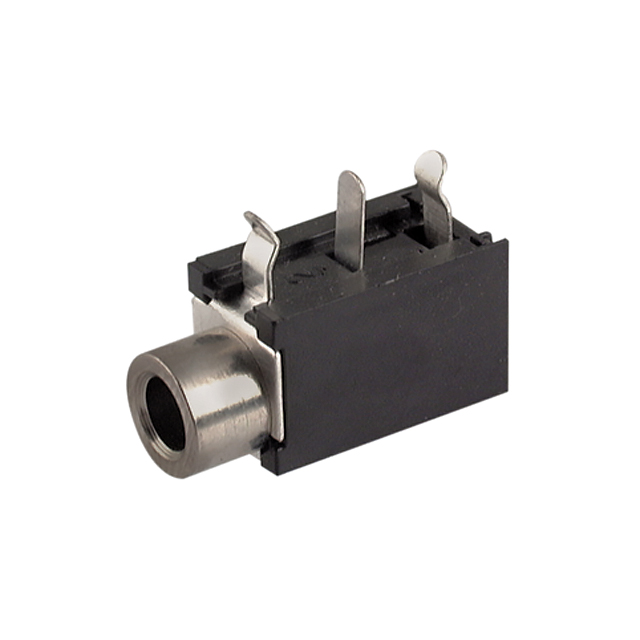

Specifications
·Gender: Female
·No. of poles: 3
·Pin diameter: 3.5 mm
·Orientation: Right angle
·Mounting type: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Termination: Solder
Materials
.Earth terminal: Brass 0.3t, silver plated
.Tip spring: Phosphor bronze 0.2t, silver plated
.Break terminal: Brass 0.3t, silver plated
.Barrel (W/thread): Brass, nickel plated
.Housing: PBT, black color
.Cover: POM, black color
