Electrical Characteristics
Overview

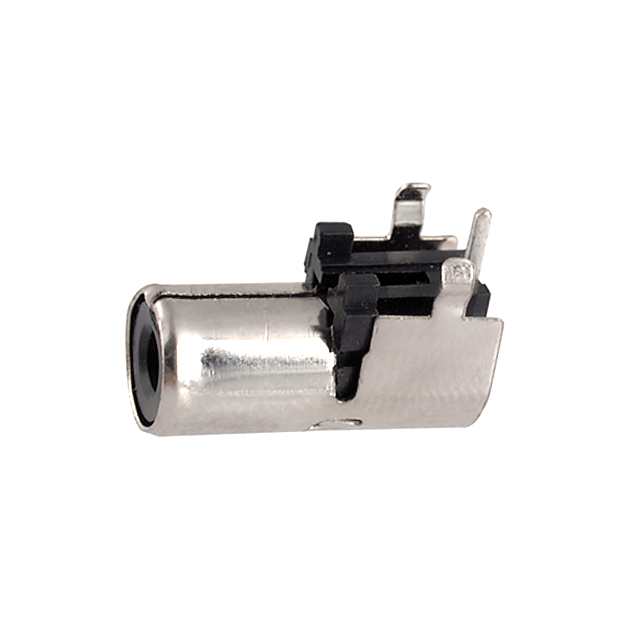

RCA Jack – Female RCA Connector
RCA jacks, or female RCA connectors, receive male RCA plugs on audio, video, and AV equipment. Designed for secure and stable connections, they support analog audio and composite video signals with minimal interference. Available in single and multi-port configurations, RCA jacks ensure broad compatibility with home theaters, stereo systems, and professional AV setups.
Specifications
·Gender: Female
·Signal lines: Mono
·Body orientation: Right angle
·Mounting: Through hole
·Termination: Solder
·Shielding: Unshielded
·Insulation color: Red, black, yellow
Materials
·Sleeve: Brass, nickel plated
·Tip: Brass, Sn/Cu plated
·Base: PBT UL94V-0
