Electrical Characteristics
Specifications
·Gender: Jack

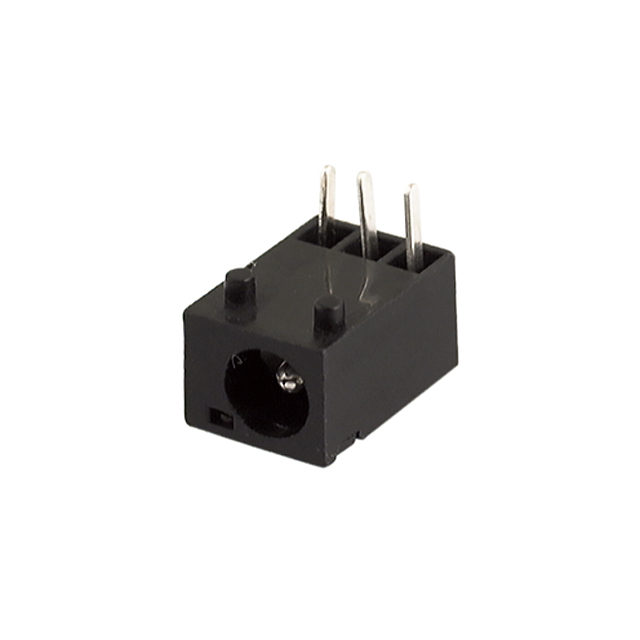

·Type: DC socket
·Pin diameter: 1.3 mm
·Current rating: 1A
·Voltage rating: 12VDC
·Mounting: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstanding voltage: 500VAC for 1 minute
·Operating temperature: -25°C to +70°C
·Storage temperature: -25°C to +85°C
·Insertion and withdrawal force: 0.2kgf ~ 2kgf)
Materials
·Pin: C2680 t=0.3, Ag plated
·Spring: SUS 301 t=0.2, Ag plated
·Curve piece: C2680 t=0.3, Ag plated
·Housing: PA66, UL-94HB black
·Cover: PA66, UL-94HB black
