Electrical Characteristics
Specifications
·Bandwidth: 100MHz
·Rise time: 3.5ns
·Attenuation ratio: 1X & 10X
·Input resistance: 1MΩ / 10MΩ ± 2%
·Input capacitance:
1X:70pF~120pF
10X:13~17pF
·Compensation range: 10~35pF
·Maximum input:
1X:200 working voltage
10X:600 working voltage
·Operating temperature: 0°C to 50°C
·Storage temperature: -20°C to +60°C

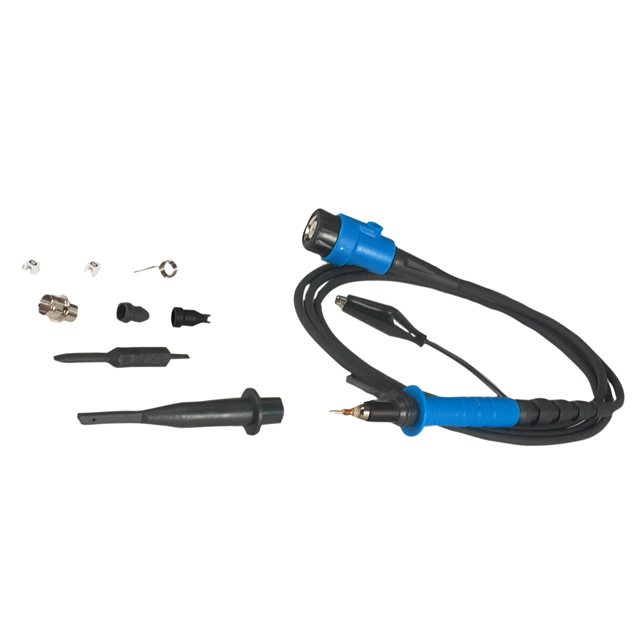

Accessory kit
·2pcs Retractable hook tip
·1pc Adjustment tool
·2pcs Locating sleeve
·4pcs Marker rings
·2pcs Ground lead
