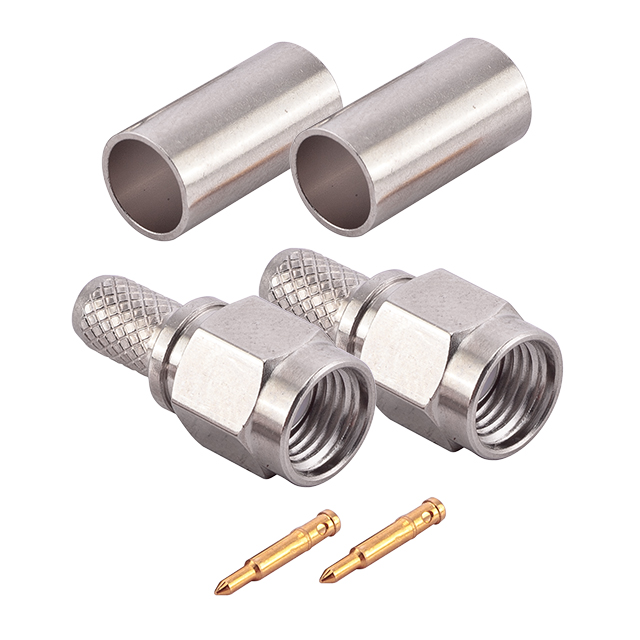

SMA male crimp type (RG58U)
gold-pin
Price per each (USD)
Quantity Price
5+ 1.5904
20+ 0.9088
100+ 0.5301
200+ 0.4418
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·Connector type: SMA
·Mounting type: Cable mount
·Impedance: 50Ω
·Termination: Solder
·Body orientation: Straight
·Frequency range: 0-18GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute

Materials

·Body: Brass, nickel plated
·Insulator: Teflon
·Shell: Brass, nickel plated
·Pin: Brass, gold plated
·Ferrule: Brass, nickel plated
