Electrical Characteristics
Specifications
·Gender: Male - female

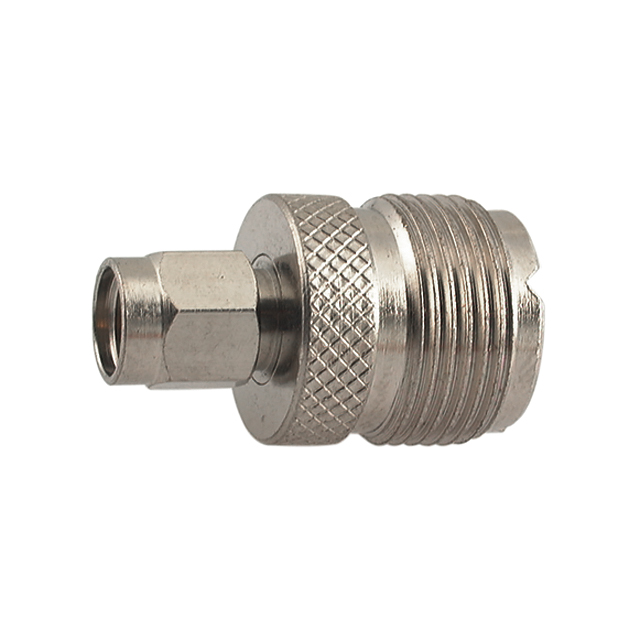

·Adapter type: SMA to UHF
·Adapter type A: SMA
·Adapter type B: UHF
·Impedance: 50Ω
·Body orientation: Straight
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
Materials
·Body: Brass, nickel plated
·Pin: Brass, gold plated
·Insulation SMA: Teflon
·Insulation UHF: Teflon
·Gasket: SI-rubber
·Retaining ring: Brass, nickel plated
·Shell: Brass, nickel plated
