Electrical Characteristics

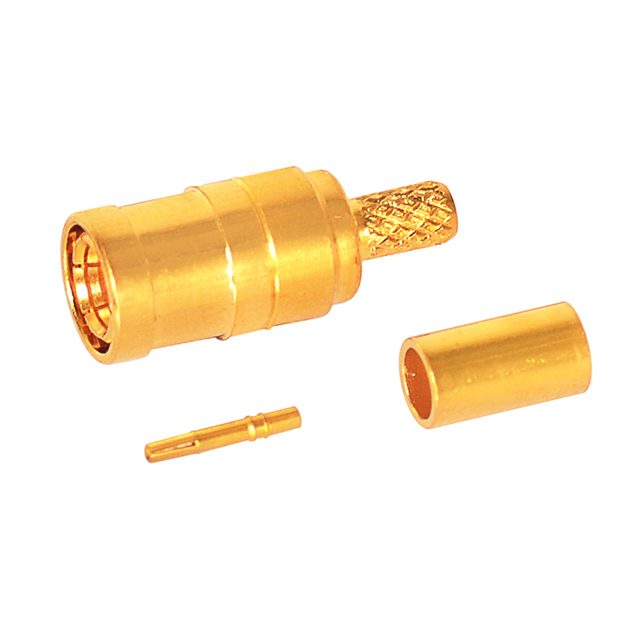

Specifications
·Gender: Male
·Connector type: SMB
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Cable mount
·Termination: Solder
·Frequency range: 0-4GHz
·Voltage rating: 250VAC
·Contact resistance: 6.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 750VAC for 1 minute
Materials
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Phosphor, gold plated
·Ferrule: Brass, gold plated
·Retaining ring: Brass, gold plated
