  4. M5506

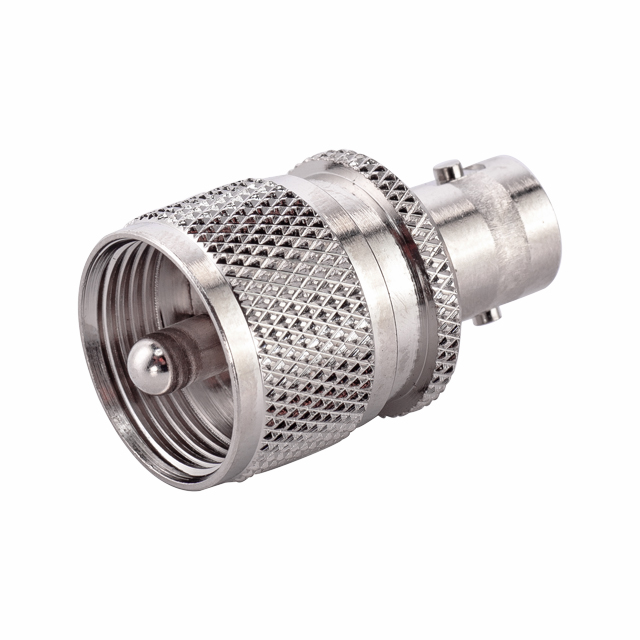

UHF male to BNC female
Unit price (USD)
Quantity Price
1+ 4.4643
5+ 2.5510
25+ 1.4881
50+ 1.2401
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male - female
·Adapter type: UHF to BNC
·Adapter type A: UHF male
·Adapter type B: BNC female
·Impedance: 50Ω
·Body orientation: Straight
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
