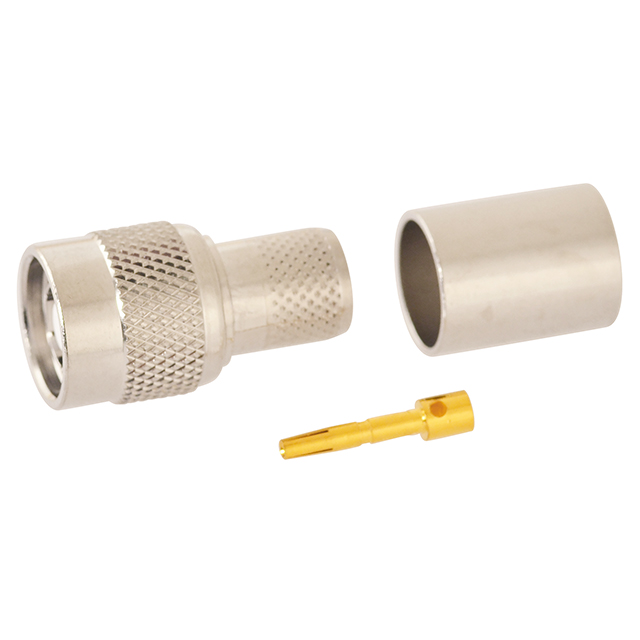

R/P TNC male crimp type (RG213U)
gold-pin
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·Connector type: Reverse polarity TNC
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Cable mount
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute

Materials

·Body: Brass, nickel plated
·Pin: Brass, gold plated
·Insulator: Teflon
·Ferrule: Brass, nickel plated
·Shell: Brass, nickel plated
·Sleeve: Brass, nickel plated
·Retaining right: Brass, nickel plated
·Gasket: Rubber, red
