Electrical Characteristics

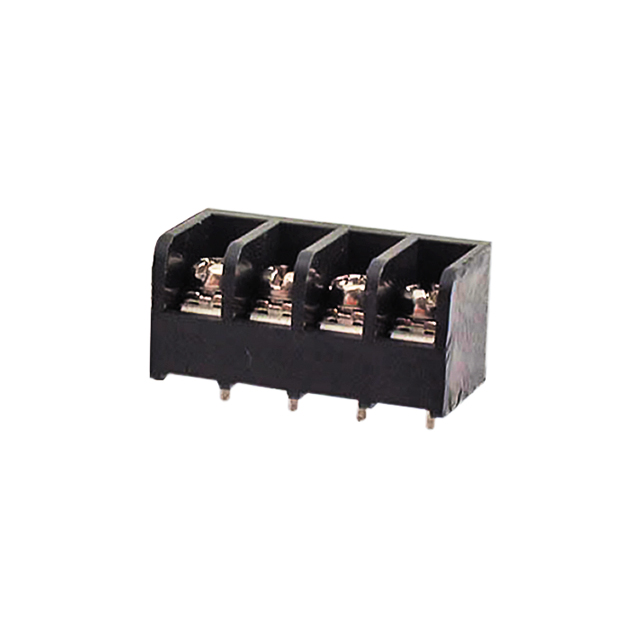

Specifications
·Pitch: 6.35mm
·No. of contacts: 4
·Rated: 10A 300VAC
·Orientation: Straight
·Insulation resistance: 1000MΩ Min. at 500VDC
·Operating temperature: -40°C to +105°C
·Screw torque value: 10Kg-cm
·Wire range AWG: 12-22 STR
Materials
·Housing: Nylon 66, black
·Terminals: Brass 0.8t, tin plated
·Terminal screws: M3 brass, nickel plated
