Electrical Characteristics
Specifications

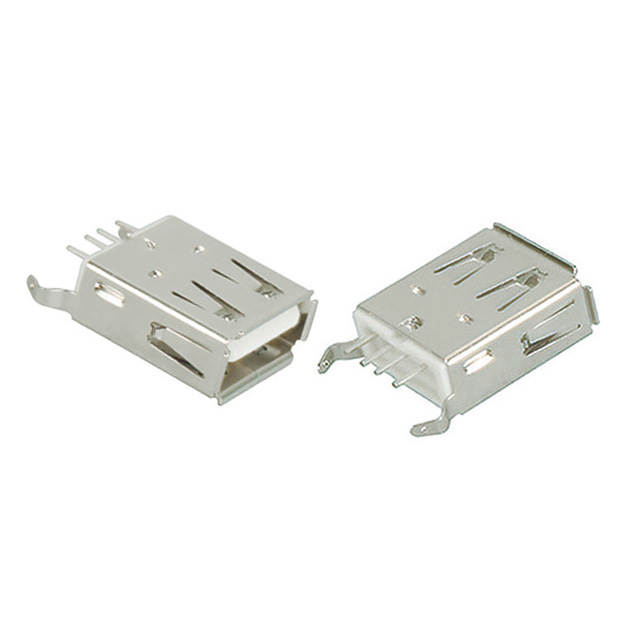

·Gender: Female
·USB connector type: A
·Current rating: 1A Max.
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Contact resistance: 30mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operating temperature: -55°C to +105°C
·Total mating force: 3.57 Kgf Max.
·Total unmating force: 1.02 Kgf Min.
Materials
·Insulator: PBT UL94-V0
·Contact: Copper alloy t=0.25mm, gold flashed
·Shell: Copper alloy t=0.3mm, nickel plated
