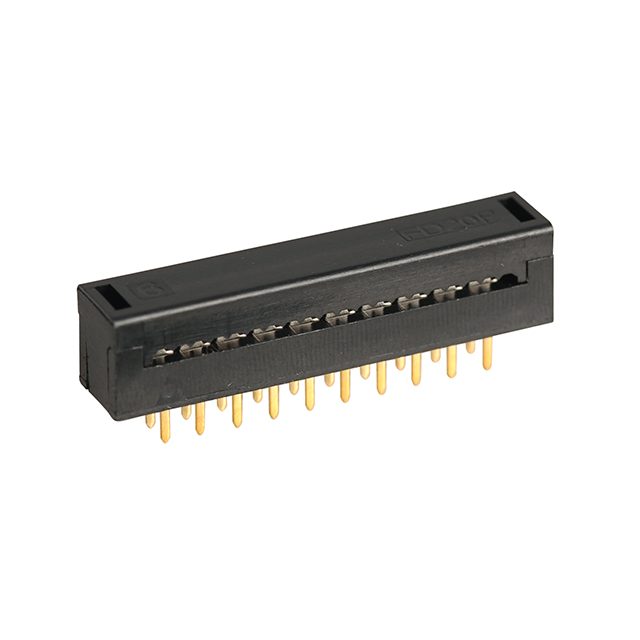

2.54mm x 2.54mm IDC DIP connector 20P
Unit price (USD)
Quantity Price
96+ 0.3448
200+ 0.2011
400+ 0.1676
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Pitch: 2.54mm
·Gender: Female
·No. of contacts: 20
·No. of rows: 2
·Current rating: 1A
·Orientation: Straight
·Mounting type: Cable mount
·Contact resistance: 15mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operating temperature: -40°C to +105°C

Materials

·Insulator: PBT+30% glass fiber (UL94V-0)
·Contact: Copper alloy, tin plated
