Overview

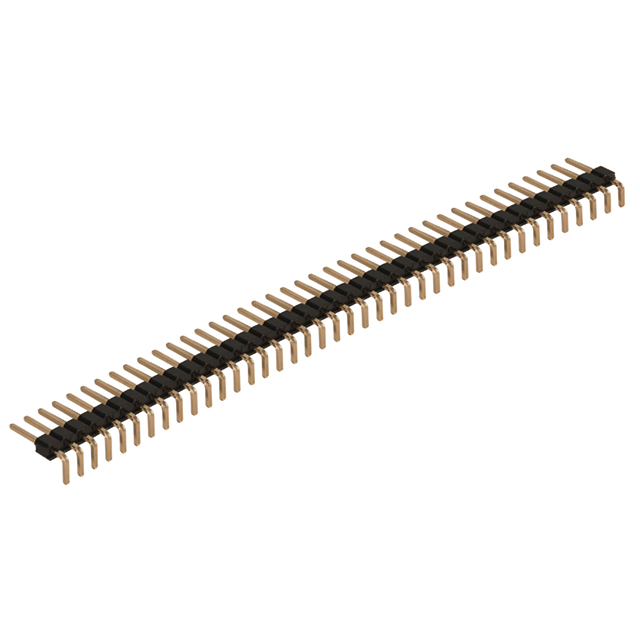

A pin header is one of electrical connector, male pin header is often associated with flat cable connectors. A male pin header is composed of single, two or triple rows of metal pins molded into a plastic base. Common header pitches are 1.27mm (0.050 in), 2.0mm (0.079 in) and 2.54mm (0.100 in) pitch. Many pin lengths of pin header are available (2 pins to 40 pins).

Specifications

·Type : Pin header
·Pitch: 2.54mm
·No. of rows: 1
·No. of contacts: 40
·Current rating: 3A Max.
·Mounting type: Through hole
·Orientation: Right angle
·Termination: Solder
·Insulation resistance: 1000MΩ Min. at 1000VDC
·Withstand voltage: 1000VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C
