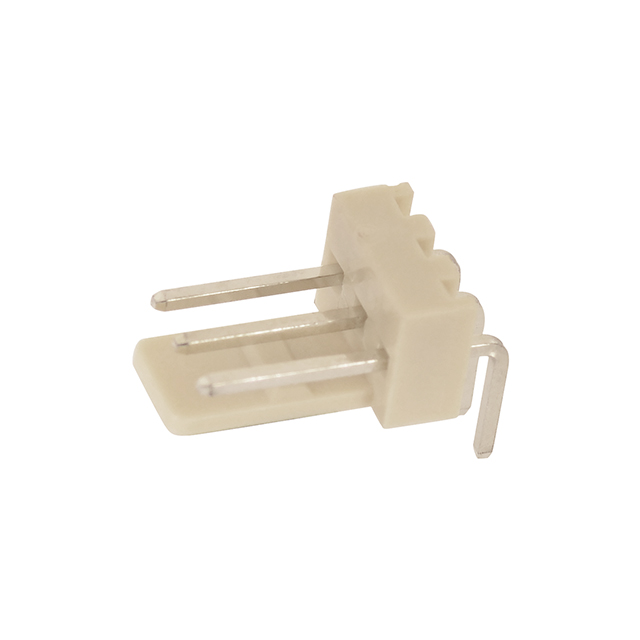

2.54mm Lock wafer
right angle 3P
Unit price (USD)
Quantity Price
1000+ 0.0330
1500+ 0.0192
3000+ 0.0160
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Pitch: 2.54mm
·No. of contacts: 3
·No. of rows: 1
·Current rating: 3A
·Voltage rating: 250V AC/DC
·Orientation: Right angle
·Termination: Solder
·Mounting type: Through hole
·Contact resistance: 20mΩ Max.
·Insulation resistance: 1000MΩ Min.
·Withstand voltage: 1000VAC for 1 minute
·Operating temperature: -25°C to +85°C

Materials

·Contact: Brass, tin plated
·Base: Nylon 66 UL94V-2
