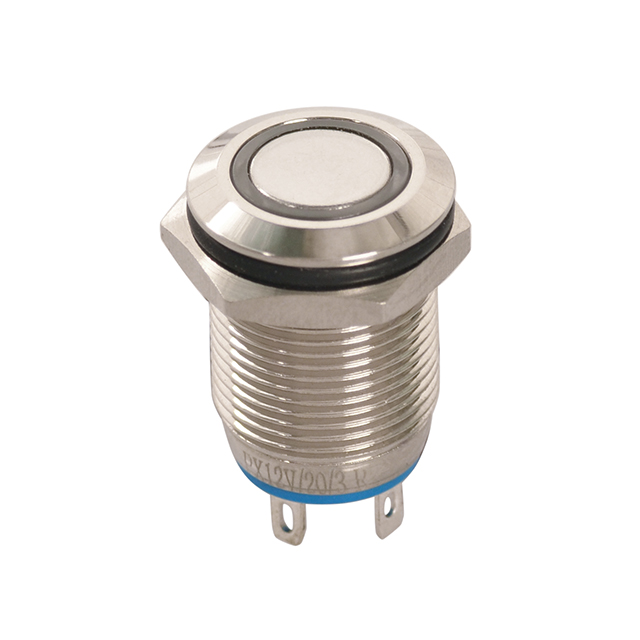

2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)
36VDC 2A
Can reach to IP65
This item can't be ordered online, please send inquiry!!
Unit price (USD)
Quantity Price
Specification :
Voltage
Color
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: SPST
·Switch function: Momentary / NO / Off-(On)
·Rating: 2A 36VDC
·Thread: M12x0.75
·Contact resistance: 50mΩ Max.
·Insulation resistance: 5OMΩ Min.
·Electrical life: 200,000 make-and-break cycles at full load
·Mechanical life: 1,000,000 cycles
·Operation temperature: -20°C to +55°C
·Travel: About 2.0mm
·Operation pressure: 3N Max.
·Ingress protection: IP65
·LED voltage: 6V, 12V, 24V, 220V
·LED color: red, yellow, green, blue, white, orange
