Electrical Characteristics
Features

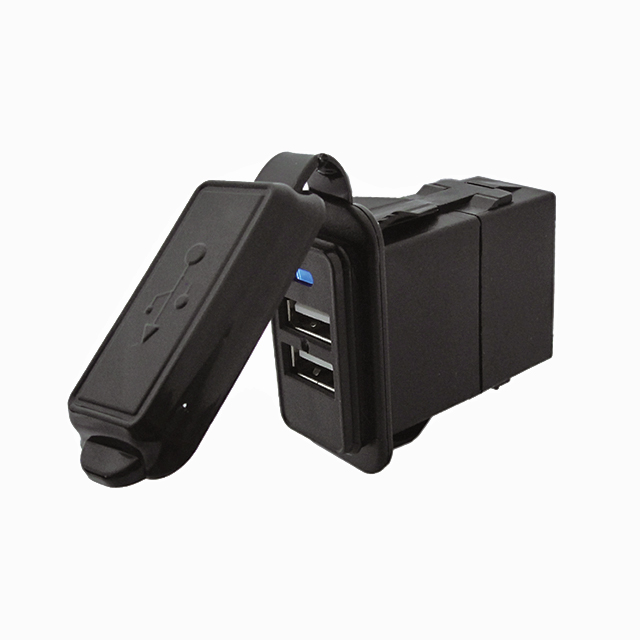

.Snap-in dual USB charger with dust-proof cover
.With white LED indicator
Specifications
·Output connector: USB A socket x 2
·Input voltage: 12V / 24V DC
·USB output: 5VDC 2.4A+2.4A Max./2 ports
·Faston terminals: 6.3mm
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Operating temperature: -20°C to +45°C
·Storage temperature: -20°C to +60°C
·IP rating: IP64 (with cover sealed)
Materials
·Housing: Nnylon 66 (UL94V-2), black
.Terminals: Brass, nickel plated
·Cap: PVC
