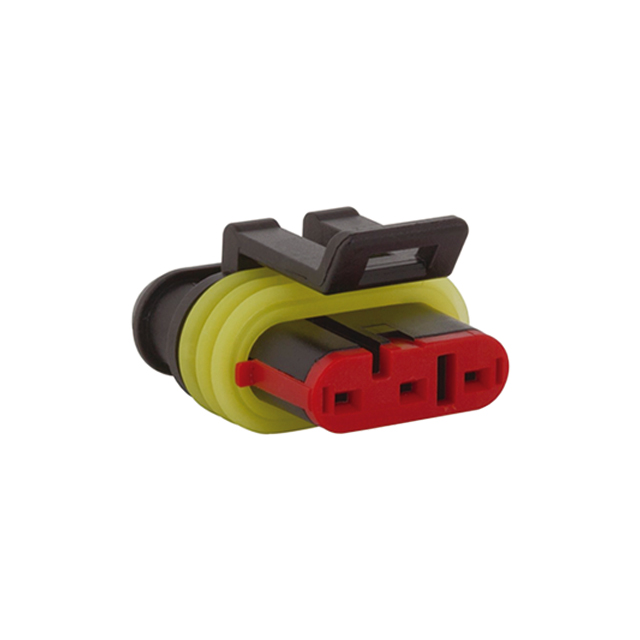

Specialseal 1.5 series automotive connector plug
3 ways 6mm
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Specifications

·Type: Automotive connector
·Series: Specialseal 1.5
·Number of contacts: 3
·Number of Rows: 1
·Gender: Male
·Current rating: 10A Max.
·Voltage drop: 3mV/A
·Isolation resistance: 100MΩ
·Dielectric resistance: 1500VAC
·Mounting type: Cable mount
·Termination method: Crimp
·Operating temperature: -40°C to +125°C
·Applicable wire size: 22AWG ~ 16AWG

Materials

·Housing: Nylon 66
·Colour: Black
