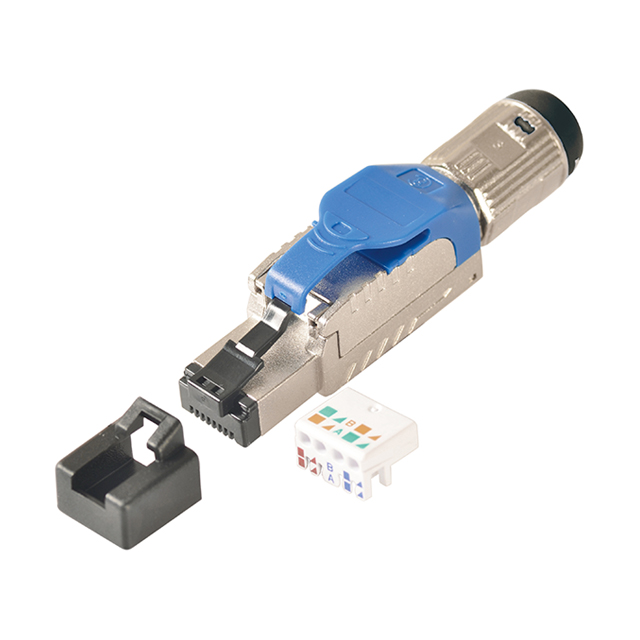

Field termination plug 8P8C (RJ45) for CAT.6a toolless type
Can reach to IP20
This item can't be ordered online, please send inquiry!!
Specification :
Data Sheet
Electrical Characteristics


·Number of ways: 8P8C
·Connector type: Modular plug RJ45 toolless type
·Orientation: Straight
·Mounting type: Cable mount
·Insertion force: 30N Max.
·Retention strength: 7.7 kg between jack and plug
·Operating temperature: -10°C to +60°C
·Life (mating cycles)
750 cycles Min.
IDC: Suitable for 23-26AWG stranded and solid wire, 20 installation cycles Min.
·Suitable for cable jacket O.D.: 6.0-7.5 mm / 23 AWG to 26 AWG
·Color: Blue, black, green, orange, white, yellow, red
·IP rating: IP20
·Length: 66 mm
·Width: 13.8 mm


·Extractor: PC, UL94V-2
·Housing: Zinc die-casting with nickel plated
·RJ45 plug
Housing: PC, UL94V-2, black
Contact: Phosphor bronze with 100 micro-inch nickel plated
Contact finish: Min. 50 micro-inch gold plated on surface contact area
·Cover: Zinc die-casting with nickel plated
·Wire management bar: PC, UL94V-2 white
Housing: PC, UL94V-2, white
Terminal: Titanium copper, tin plated
·Grounding contact: zinc die-casting, nickel plated
Housing: Zinc die-casting, nickel plated
SR: PC, UL94V-2, transparent
Cap: PC, UL94V-2, black
·PCB: UL94-V0
·Copper foil tape
·Dust cap: PE, black
