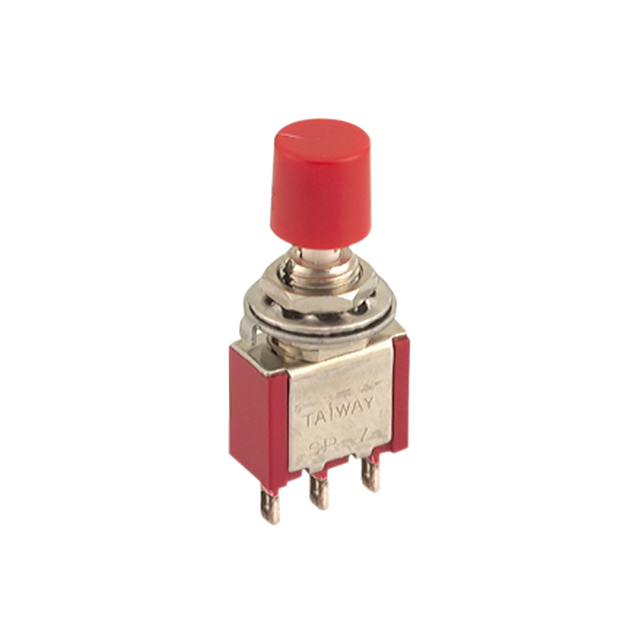

3P mini pushbutton switch (SPDT)
on-(on) W/approval
120V 3A (250V 1A)
Price per each (USD)
Quantity Price
2+ 3.2577
10+ 1.8615
50+ 1.0859
100+ 0.9049
Specification :
Color
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Mechanical life: 50,000 make-and-break cycles
·Contact resistance: 20mΩ Max. initial @ 2-4VDC, 100mA for silver plated contacts
·Insulation resistance: 1,000MΩ Min.
·Dielectric strength: 1,000V RMS Min. @ sea level
·Operating temperature: -30°C to +85°C
Contact material options
·Contact material: Silver
·Terminal plating: Silver
·Ratings: 3A with resistant load @ 120VAC or 28VDC
1A with resistant load @ 250VAC

Materials

·Case: Diallyl phthalate(DAP) (UL94V-0)
·Plunger: Glass filled nylon or glass filled polyester
·Bushing: Brass, nickel plated
·Housing: Stainless steel
·Contact: Silver or gold plated

Applications

·Telecommunications
·Networking equipment
·Computers / servers
·Performance audio and instrumentation
