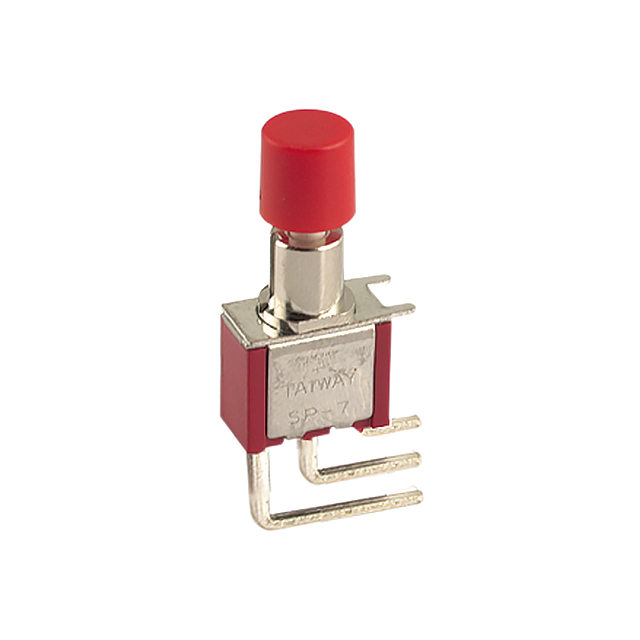

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.

Specifications

·Rating: 3A 120VAC / 1A 250VAC
·Contact resistance: 20mΩ Max. initial @2-4VDC 100mA for silver plated contacts
·Insulation resistance: 1,000MΩ Min.
·Dieletric strength: 1,000V RMS@sea level
·Operating temperature: -30°C to +85°C
·Mechanical life: 50,000 make-and-break cycles

Materials

·Case: Dially phthalate (DAP) (UL94V-0)
·Plunger: Glass filled nylon or glass filled polyester
·Bushing: Brass, nickel plated
·Housing: Stainless steel
·Terminal contact: Silver
