Electrical Characteristics
Overview

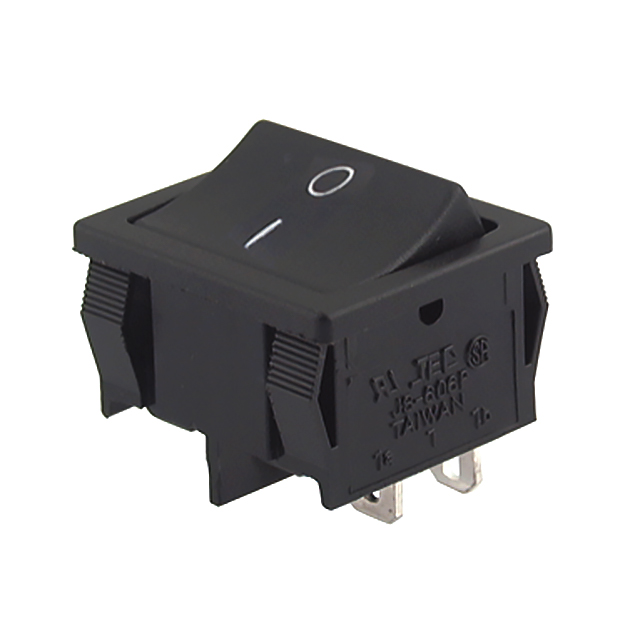

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Features
·Illuminated actuators are molded in PC, available with red, amber and green colors.
·Snap-in mounting, easy to install switch into panel.
Specifications
·Rating: 10A 125VAC / 6A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC 1 minute
Materials
·Frames: Nylon (UL flame: 94V-2)
·Terminals: Silver plated brass
