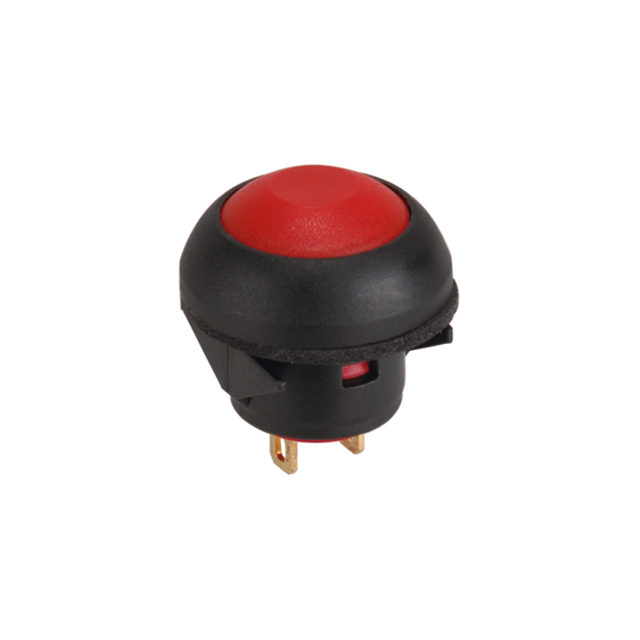

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.

Specifications

·Circuit: SPST
·Switch function: Off-(On)
·Max. rating with resistive load: 400mA 32VAC / 100mA 50VDC / 125mA 125VAC
·Contact resistance: 50mΩ Max. (initial)
·Insulation resistance: 1GΩ Min. at 500VDC
·Dieletric strength: 1000VAC rms.
·Electrical life at full load: 500,000 cycles
·Panel thickness: 0.8mm (.031) Min. - 1.8mm (.071) Max.
·Total travel: 1.5mm (.059)
·Operating force: 2N-5N
·Contact bounce: 10 ms.
·Mechanical life: 1,000,000 cycles
·Torque: 1.5 Nm Max. applied to nut
·Soldering: 350°C Max. for 5 seconds

Materials

·Case: Diallyl phthalate (DAP) (UL94V-0)
·Cap: Polyamide 6/6
·Bushing: Polyamide 6/6
·Terminal contacts: Gold over silver plated
