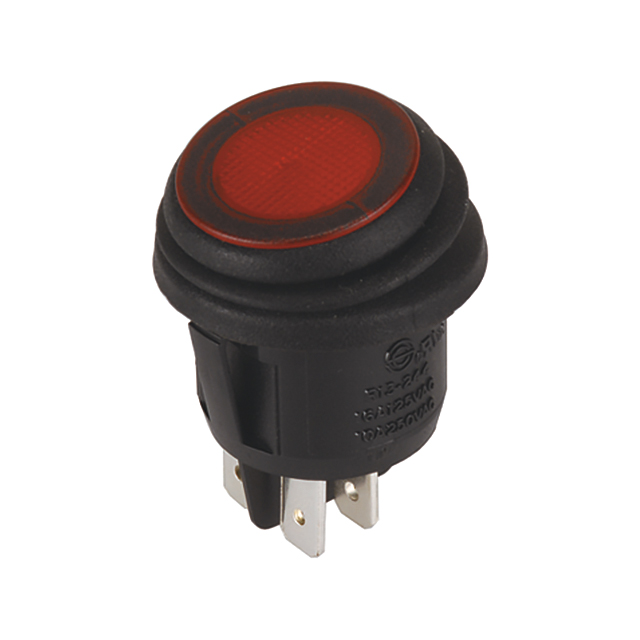

4P waterproof illuminated
rocker switch (DPST) on-off
125V 16A (250V 10A) W/LED W/approval
Can reach to IP65
Price per each (USD)
Quantity Price
2000+ 1.3889
Specification :
Color
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: DPST
·Switch function: On-Off
·Rating: 20A 14VDC / 16A 125VAC / 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating temperature: -20°C to +85°C
·Waterproof: IP65

Materials

·Frame: Nylon 66 (94-V2)
·Actuator PC clear (94-V2)
·Waterproof rubber: Silicone
·Terminals: Copper alloy, silver plated
