Electrical Characteristics
Overview

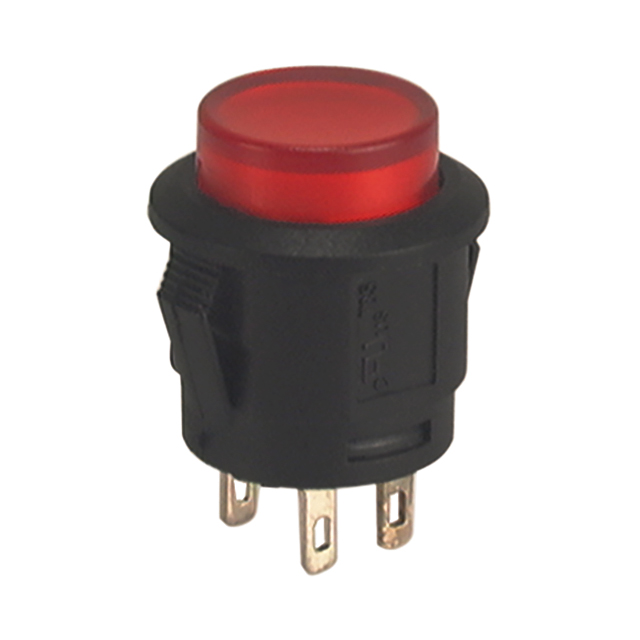

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.
Specifications
·Circuit: SPST
·Switch function: Momentary / NO / Off-(On)
·Rating: 3A 125VAC / 1.5A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
Materials
·Frames: Nylon (UL flame: 94V-2)
·Terminals: Silver plated brass
·Illuminated actuators: PC, available with red, amber and green colors
