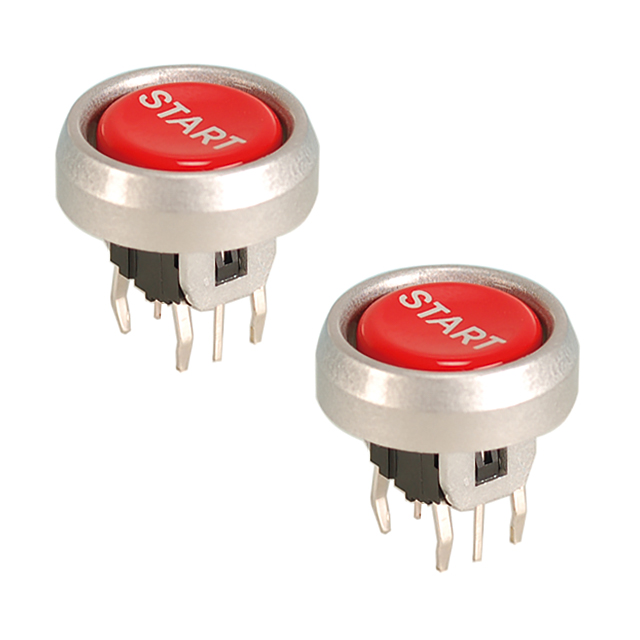

Illuminated tact switch 160gf
W/white LED
12V 0.05A
Price per each (USD)
Quantity Price
100+ 0.9081
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Features

·Customized cap options
·Bi-color LED available
·Long operating life

Specifications

·Current range: 50mA 12VDC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 250VAC for 1 minute
·Operating force: 160±50gf
·LED operating current: 20mA Max.
·Operating temperature: -40°C to +85°C
·Soldering temperature: 245°C Max. for 5 seconds
·Continuous soldering time: 5 seconds Max.
·Life: 300,000 cycles

Materials

·Cover: High-Temp thermoplastic PC
·Cap base: High-Temp thermoplastic PA66
·Stem: High-Temp thermoplastic PA66, white
·Contact: Stainless steel SUS301 with silver cladding
·Terminal: Brass, silver plated
·Base: High-Temp thermoplastic PA66, black

Applications

·Sever
·Modem
·Data storage
·Audio module
·Office equipment
