Electrical Characteristics
Features

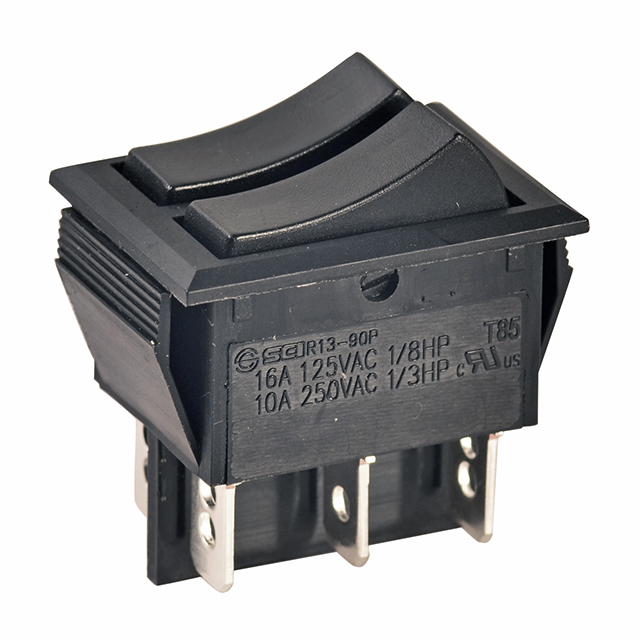

·Illuminated actuators are molded in PC, available with red, amber,blue, green and white colors.
·Snap-in mounting, easy to install switch into panel.
Specifications
·Circuit: SPDT
·Switch function: On-On
·Rating: 16A 125VAC / 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC 1 minute
Materials
·Frames: Nylon#66, black
·Actuator: Nylon#66, black
