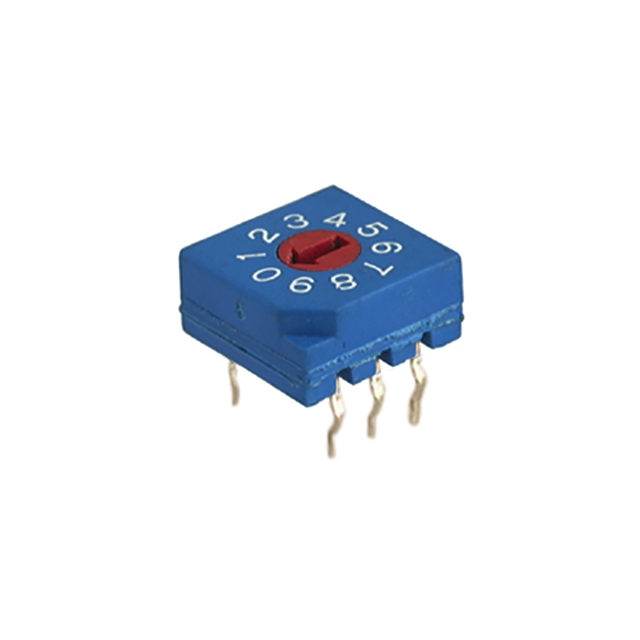

Features

·Molded-in terminals and fully sealed construction.
·Standard 2.54mm pin spacing.
·All plastics UL 94V-0 grade fire retardant.
·Reliable contact and long-term stability.
·Binary decimal (8 or 10 positions) and hexadecimal (16 positions), real and ·complementary codes available.
·Pin-out compatible with most of current equivalents.
·Gold plated contacts to ensure low contact resistance.

Specifications

·Rating: 25mA 24VDC (switching), 100mA (non-switching)
·Contact resistance: 100mΩ Max.
·Insulation resistance: 1000MΩ Min. at 100VDC
·Dielectric strength: 250VAC Min. for 1 minute
·Capacitance: 5pF Max. at 1 KHz
·Operating temperature: -25°C to +70°C
·Storage temperature: -40°C to +85°C
·Operation force: 500 gf-cm Max.
·Mechanical life: 2000 steps per positions
·Vibration: 10Hz-50Hz-10Hz for 6Hrs.
·Solderability: After flux 245±5°C for 5±0.5 seconds, 95% coverage
·Resistance to soldering heat: 260±5°C for 5±1 seconds

Applications

·Address switching applications
·Data storage devices
·Computer and peripherals
·Instrumentation
