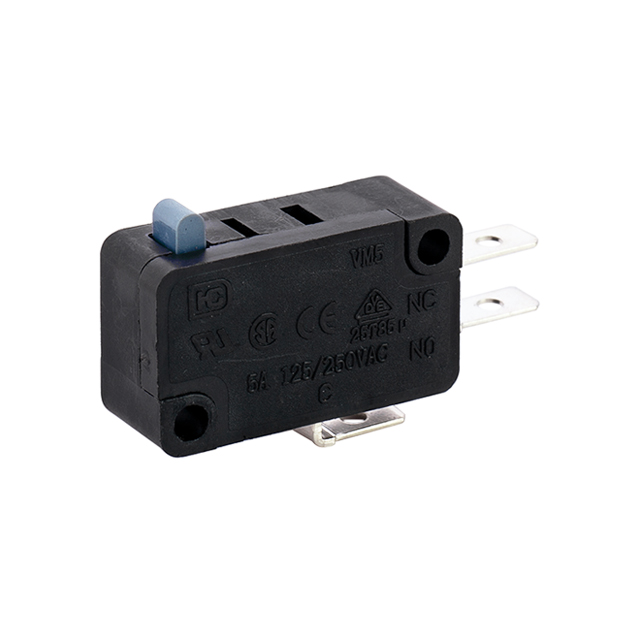

Micro switch (SPDT) on-on 110gf
250V 5A W/approval
Unit price (USD)
Quantity Price
5+ 1.2500
20+ 0.7143
100+ 0.4167
200+ 0.3472
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

Micro Switch – Precision Snap-Action Switch
Micro switches are compact snap-action switches requiring minimal force for actuation. Found in industrial controls, appliances, and automotive systems, they are valued for long life, precise switching, and varied actuator styles.

Specifications

·Circuit: SPDT
·Switch fucntion: On-On
·Rating: 5A 125VAC / 5A 250VAC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating force: 110±30gf
·Operating temperature: -25°C to +85°C
·Soldering temperature: 360°C Max. for 3 seconds
·Ambient humidity used: 85% RH Max.
·Mechanical life: 100,000 cycles
·Electrical life: 10,000 cycles

Materials

·Upper housing: PBT, black
·Lower housing: PBT, black
·Button: PBT
·Spring: SUS304
·Terminals: C2680
·Contacts: Silver alloy
·Change plate: C5210
·Fixed rod: C2680
