Electrical Characteristics
Features

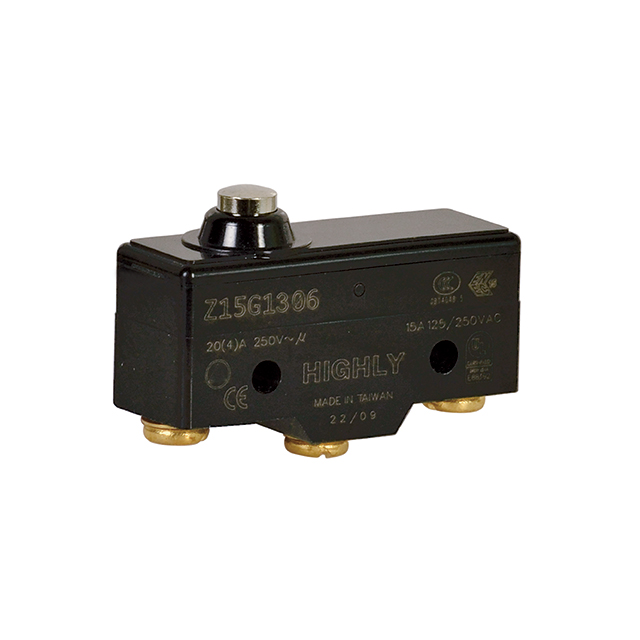

·High precision basic switch in a variety of styles
·Wide margins of operating conditions increase the operating speed range
·Available in general purpose
Specifications
·Circuit: SPDT
·Switch function: On-On
·Rating: 15A 250VAC
·Contact resistance: 15mΩ Max. (initial)
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute between terminals of same polarity
·Mechanically life: 1,000,000 operations Min.
·Electrically life: 100,000 operations Min.
Operating characteristics
·OF Max.: 250-350g
·RF Min.: 114g
·PT Max.: 0.4mm
·OT Min.: 1.6mm
·DT Max.: 0.05mm
·OP: 21.5±0.5mm
