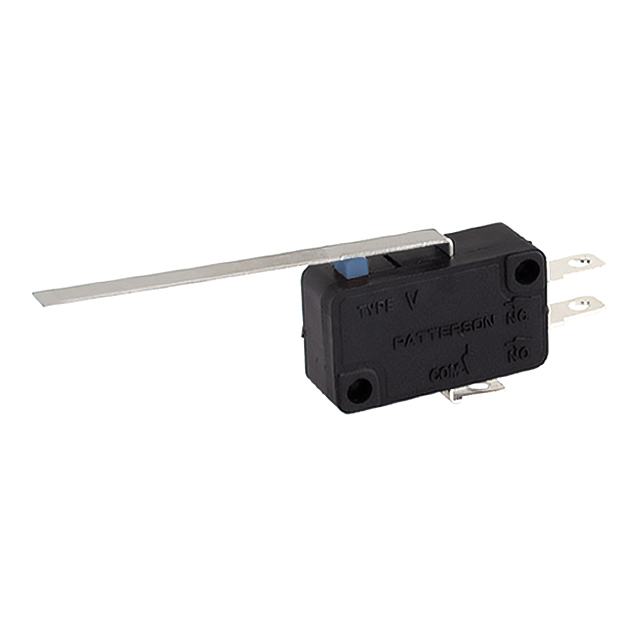

Electrical Characteristics
Specifications
·Circuit: SPDT
·Switch fucntion: On-On
·Rating: 5A 125VAC / 5A 250VAC
·Mounting type: Chassis mount
·Termination: Solder lug
·Actuator type: Lever
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating force: 40gf
·Operating temperature: -25°C to +85°C
·Soldering temperature: 360°C Max. for 3 seconds
·Ambient humidity used: 85% RH Max.
·Mechanical life: 100,000 cycles
·Electrical life: 10,000 cycles
Materials
·Upper housing: PBT, black
·Lower housing: PBT, black
·Button: PBT, gray
·Spring: SUS304
·Terminals: C2680
·Contacts: Silver alloy
·Change plate: C5210
·Fixed rod: C2680
·Lever: SUS301
