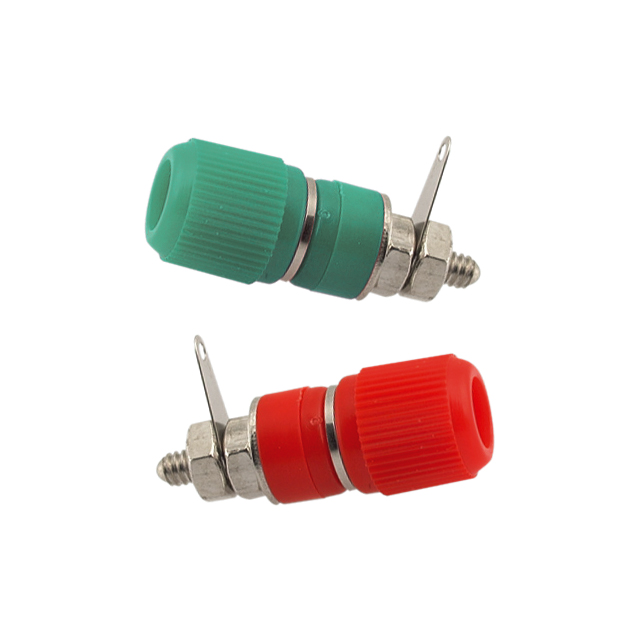

Binding post
Unit price (USD)
Quantity Price
5+ 1.2931
20+ 0.7389
100+ 0.4310
200+ 0.3592
Specification :
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics


A binding post (banana socket) is a widely used connector commonly used to make electrical connections in audio and electronic test equipment, such as connecting amplifiers, speakers, and other audio or test equipment. A binding post (banana socket) is also used on electronic test equipment to attach a single wire or Test leads.
Because the binding posts (banana socket) can accept various connectors, such as bare wire, spade connectors, and banana plugs, it can be used in a wide range of settings and applications.
The advantage of binding posts (banana socket) is their durability, they are more resistant to wear and tear and has a longer lifespan.


·Type : Binding Post (Banana Socket)
·Gender: Female
·Current rating: 10A
·Voltage rating: 125VAC
·Diameter: 4mm
·Mounting: Panel mount
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
·Termination: Solder, screw terminal
·Length: 35.5 mm


Bushing: ABS
Washer: Steel, nickel plated
Top: ABS
Bottom: ABS
Nut: Steel, nickel plated
Solder contact:
