Overview

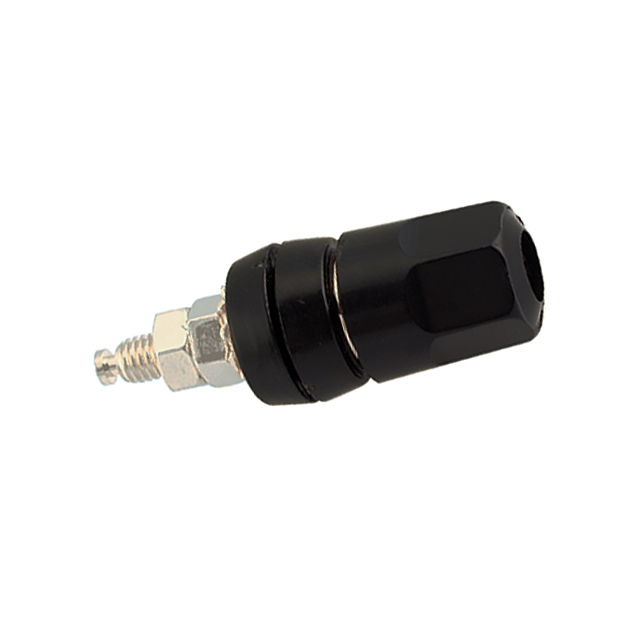

A binding post (banana socket) is a widely used connector commonly used to make electrical connections in audio and electronic test equipment, such as connecting amplifiers, speakers, and other audio or test equipment. A binding post (banana socket) is also used on electronic test equipment to attach a single wire or Test leads.
Because the binding posts (banana socket) can accept various connectors, such as bare wire, spade connectors, and banana plugs, it can be used in a wide range of settings and applications.
The advantage of binding posts (banana socket) is their durability, they are more resistant to wear and tear and has a longer lifespan.

Specifications

·Type : Binding Post (Banana Socket)
·Gender: Female
·Current rating: 10A
·Diameter: 4mm
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
·Mounting: Panel mount
·Color: Red or black
·Length: 44.6 mm

Materials

·Knob: PA66
·Board: PA66
·Body: Brass, nickel plated
·Nut: Brass, nickel plated
