Electrical Characteristics

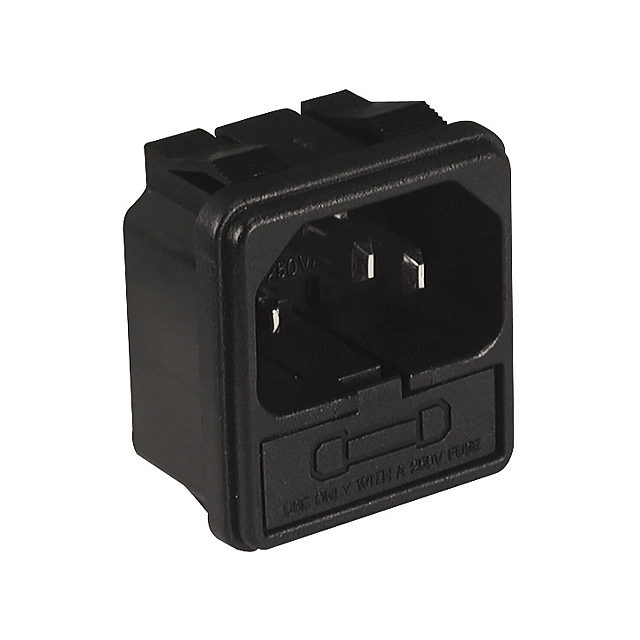

Specifications
·Gender: Male
·Current rating: 10A
·Voltage rating: 250VAC
·Mounting: Panel mount
·Body orientation: Straight
·Termination: Quick connect
·Faston terminals: 4.8 x 0.8mm
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 2000VAC for 1 minute
·Operating temperature: -25°C to +85°C
Materials
·Body: Nylon#66, UL94V-2 resin glass 30%
·Fuse cover: Nylon#66, UL94V-2 resin glass 30%
·Edge terminal: Bsp1-1/2H, t=2.0, Sn plated
·Center terminal: Bsp1-1/2H, t=2.0, Sn plated
·Fuse holder: Bsp1-1/2H, t=0.5, Sn plated
·Fuse holder: Bsp1-1/2H, t=0.8, Sn plated
·Connector: Bsp1-1/2H, t=0.6, Sn plated
