Electrical Characteristics
Overview

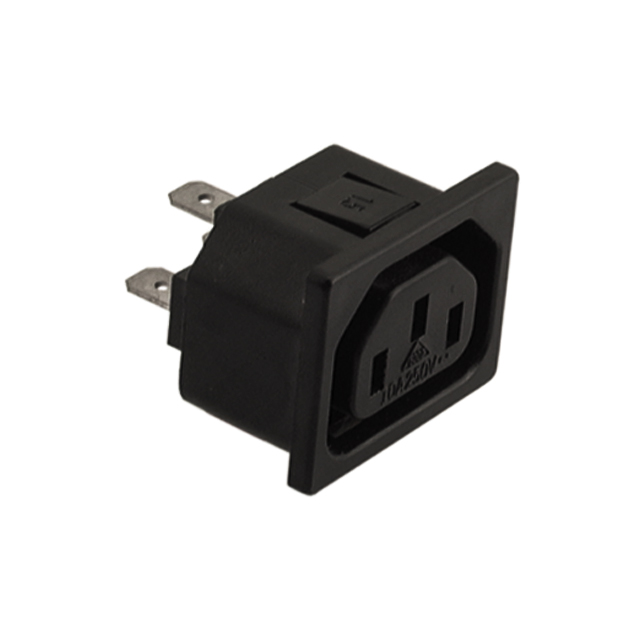

AC Socket – Reliable Power Inlet
AC sockets provide safe, stable power input to devices. Common in computers, appliances, and industrial equipment, they are available in IEC C13, C14, and custom configurations for secure connections.
Specifications
·Gender: Female
·Rating: 10A 250VAC / 15A 250VAC
·Mounting: Panel mount
·Body orientation: Straight
·Termination: Quick connect
·Faston terminals: 4.8 x 0.8mm
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 2000VAC for 1 minute
Materials
·Body: Black Glass-Fiber Thermoplastic, UL94V-0 or UL94V-2
