Electrical Characteristics
Overview

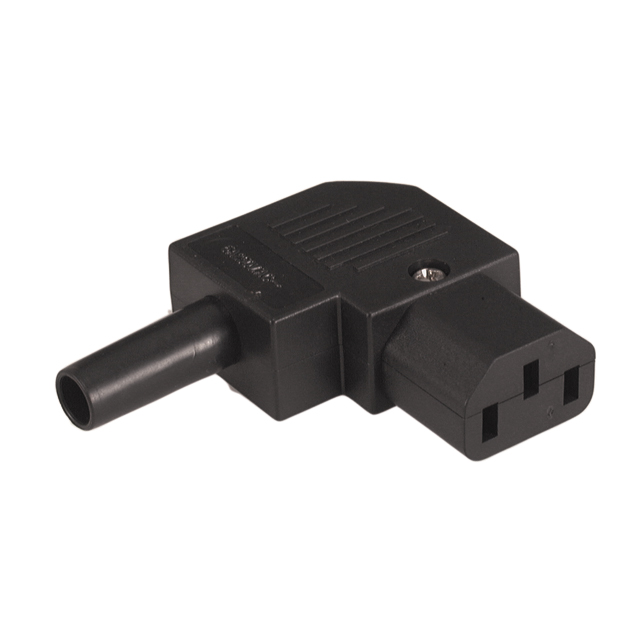

AC Power Plugs – IEC C13 & C14
IEC C13 and C14 AC plugs offer secure, high-capacity connections for reliable power delivery. Built for durability and compliance with global standards, they are widely used in servers, power distribution units (PDUs), networking devices, and industrial control systems.
Specifications
·Gender: Female
·Current rating: 6A
·Voltage rating: 250VAC
·Body orientation: Right angle
·Termination: Screw
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 2000VAC for 1 minute
Materials
·Body: ABS
·Screw: Iron
