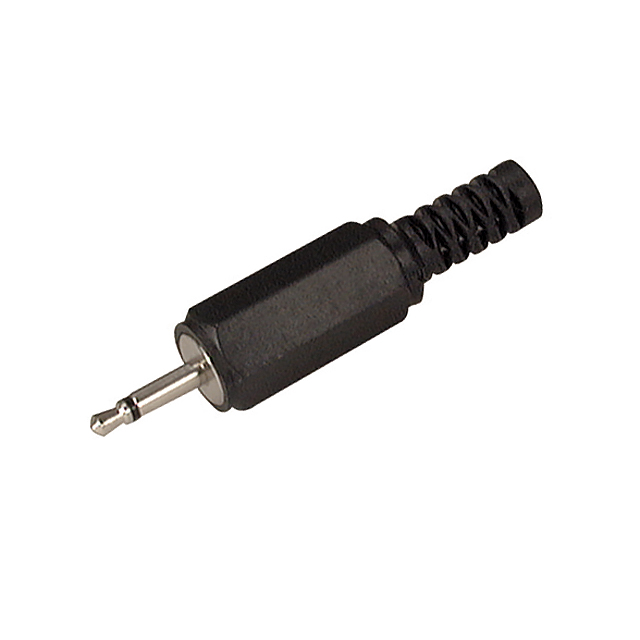

Phone Plug -2.5 mm / 3.5 mm / 6.35 mm
Phone plugs, also called audio jack plugs, are available in 2.5 mm, 3.5 mm, and 6.35 mm sizes for compact, consumer, and professional audio devices. They support TS (mono), TRS (stereo), and TRRS (stereo + mic) configurations, with some variants offering balanced TRRS or TRRRS formats. Ideal for test cables, signal tracing leads, and multimeter audio adapters.

Specifications

·Gender: Male
·No. of contacts: 2
·Pin diameter: 2.5 mm
·Orientation: Straight
·Mounting type: Cable mount
·Termination: Solder
·Contact resistance: depends on mated connector
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
