Overview

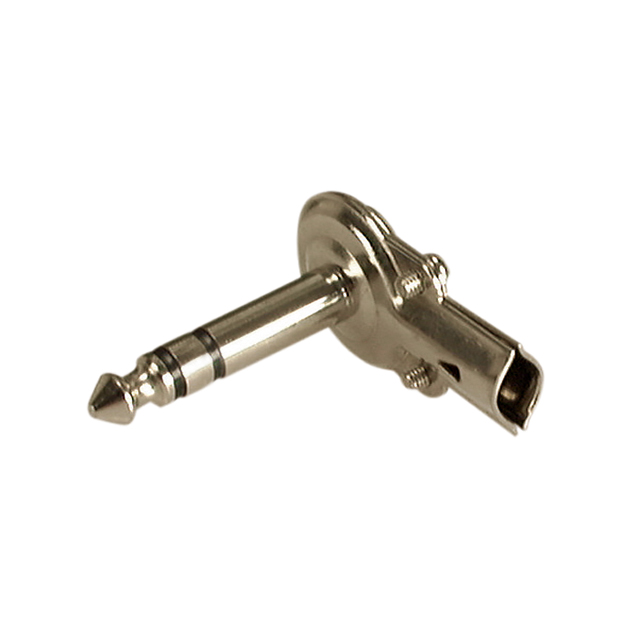

Phone Plug -2.5 mm / 3.5 mm / 6.35 mm
Phone plugs, also called audio jack plugs, are available in 2.5 mm, 3.5 mm, and 6.35 mm sizes for compact, consumer, and professional audio devices. They support TS (mono), TRS (stereo), and TRRS (stereo + mic) configurations, with some variants offering balanced TRRS or TRRRS formats. Ideal for test cables, signal tracing leads, and multimeter audio adapters.
Specifications
·Gender: Male
·Type: Phone plug
·No. of contacts: 3
·Pin diameter: 6.35 mm
·Orientation: Right angle
·Mounting: Cable mount
·Termination: Solder
·Length: 37.6 mm
·Height: 38.3 mm
Materials
·Brass
·Nickel plated
