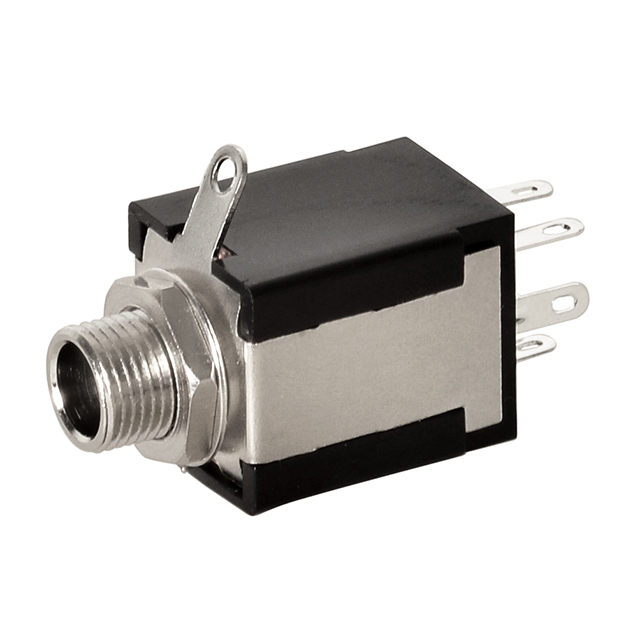

Specifications

·Gender: Female
·No. of poles: 7
·Pin diameter: 1/4" (6.35 mm)
·Orientation: Straight
·Mounting type: Panel mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Termination: Solder

Materials

.Break terminal: Phosphor bronze 0.35t, silver plated
.Transfer terminal: Brass 0.4t, silver plated
.Tip spring: Phosphor bronze 0.35t, silver plated
.Ring spring: Phosphor bronze 0.35t, silver plated
.Housing: POM, black color
.Cover: Steel 0.5t, nickel plated
.Barrel (W/thread): Brass, nickel plated
.Insulator: Red vulcanited fibre, red color
.Insulator: POM, ivory color
.Nut: Steel 2.0t, nickel plated
.Washer: Steel 0.5t, nickel plated
