Electrical Characteristics

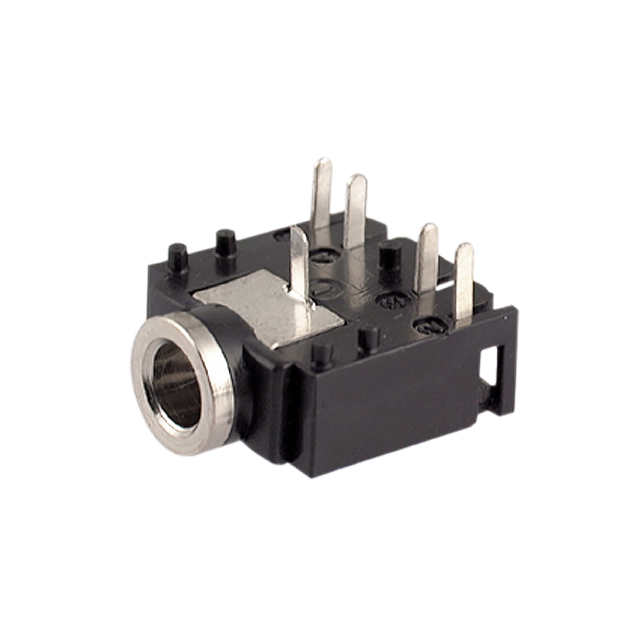

Specifications
·Gender: Female
·No. of poles: 5
·Pin diameter: 3.5 mm
·Current rating: 1A
·Voltage rating: 12V DC
·Orientation: Right angle
·Mounting type: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Insertion force: 3N~30N (0.3~3kgf)
·Withdrawal force: 3N~30N (0.3~3kgf)
·Ambient temperature: 15°C to 35°C
·Termination: Solder
Materials
·1# terminal: C5191 t=0.25, Ag plated
·2# terminal: C5191 t=0.3, Ag plated
·3# terminal: C5191 t=0.25, Ag plated
·4# terminal: C2680 t=0.35, Ag plated
·5# terminal: C2680 t=0.3, Ag plated
·Housing: PA66, black
·Axis support: H59 copper alloy, Ni plated
