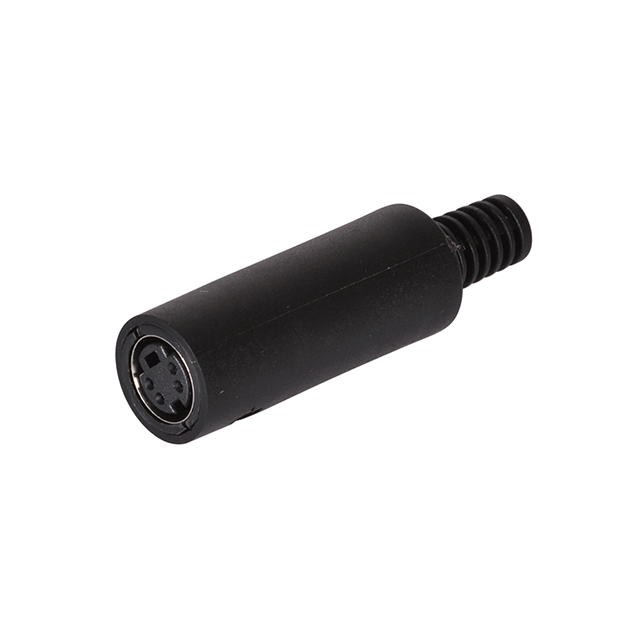

4P mini din socket
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Specifications

·Gender: Female
·No. of contacts: 4
·Current rating: 1A
·Voltage rating: 100V AC
·Orientation: Straight
·Contact resistance: 30mΩ Max. (initial)
·Insulation resistance: 50MΩ Min. at 500VDC
·Dielectric strength: 500VAC for 1 minute
·Mounting type: Cable mount
·Contact termination: Solder

Materials

·Boot: PVC
·Middle hood: ABS
·Metal part: Brass, nickel plated
·Insulator: PC
·Pin contact: Brass, silver plated
