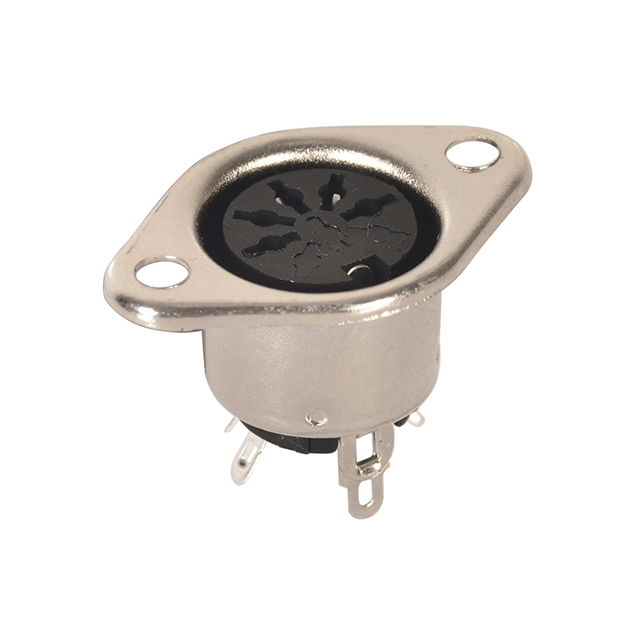

DIN Socket – Female DIN Connector
DIN sockets are female connectors for 3-, 4-, 5-, 6-, 7-, or 8-pin DIN plugs, with keyed orientation for secure mating. Available in panel-mount, cable-mount, and PCB-mount designs, they are used in legacy audio systems, MIDI devices, and test benches for reliable multi-signal connections.

Specifications

·Gender: Female
·No. of contacts: 5
·Rating: 1A 100VAC
·Orientation: Straight
·Contact resistance: Pin-30mΩ Max. / shell-50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC Min.
·Withstand voltage: 250VAC for 1 minute
·Mounting type: Panel mount
·Contact termination: Solder

Materials

·Shell cover: Steel, nickel plated
·GND contactor: Phosphor bronze, nickel plated
·Housing: ABS
·Terminals: Copper, silver plated
