Electrical Characteristics
Specifications
·Gender: Male - male

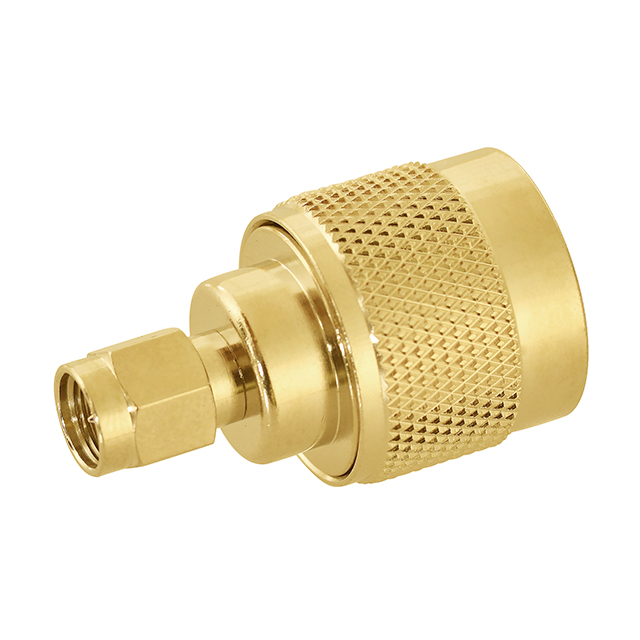

·Adapter type: SMA to N
·Adapter type A: SMA
·Adapter type B: N
·Impedance: 50Ω
·Body orientation: Straight
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
Materials
·Body: Brass, gold pated
·Pin: Brass, gold plated
·Insulation: Teflon
·Ground ring: Brass, gold plated
·Shell: Brass, gold plated
·Retaining ring: Brass, gold plated
·Gasket: SI-rubber, orange
·Shell: Brass, gold plated
