Electrical Characteristics
Specifications

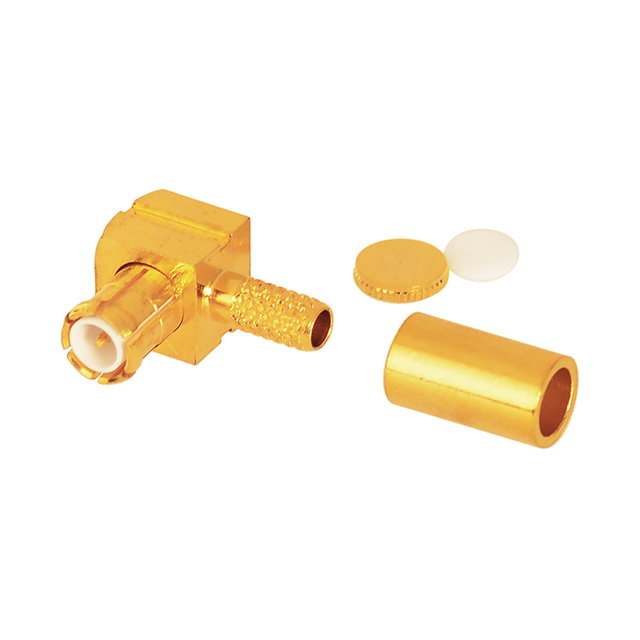

·Gender: Male
·Connector type: MCX
·Impedance: 50Ω
·Body orientation: Right angle
·Mounting type: Cable mount
·Termination: Solder
·Frequency range: 0-6GHz
·Voltage rating: 335VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
Materials
·Body: Beryllium copper, gold plated
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Brass, gold plated
·Body: Brass, gold plated
·Accessory insulator: Teflon
·Cap: Brass, gold plated
