Electrical Characteristics
Overview

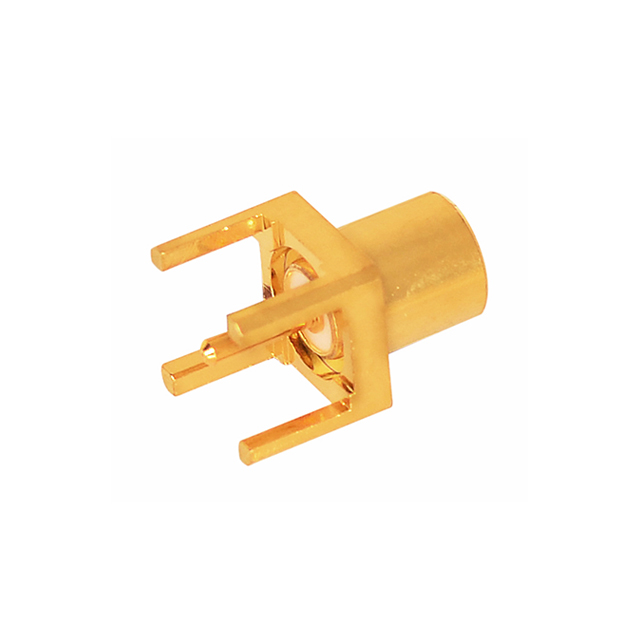

MCX Connector – Miniature RF Connector
MCX connectors are small RF connectors with snap-on coupling, ensuring secure links in high-density layouts. Used in wireless modules, GPS receivers, and RF boards, they operate up to 6 GHz with excellent signal integrity.
Specifications
·Gender: Female
·Connector type: MCX
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: PCB mount
·Frequency range: 0-6GHz
·Voltage rating: 335VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
Materials
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Beryllium copper, gold plated
