Electrical Characteristics
Specifications

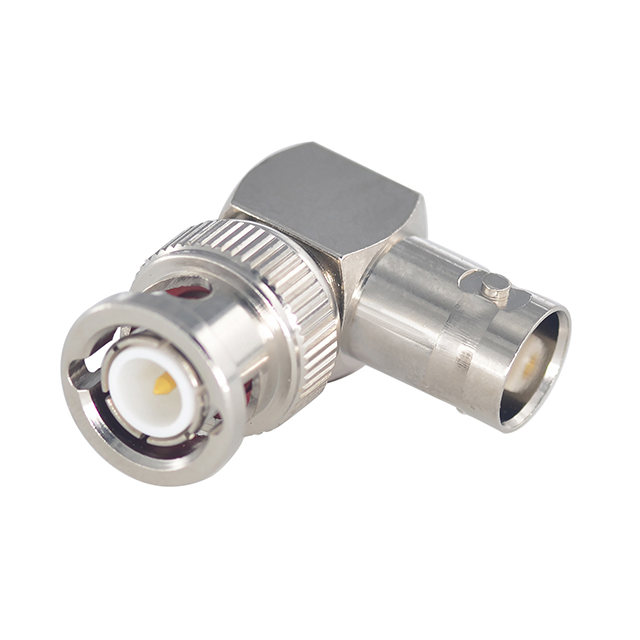

·Gender: Male - female
·Adapter type: BNC to BNC
·Adapter type A: BNC male
·Adapter type B: BNC female
·Impedance: 50Ω
·Body orientation: Right angle
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Sheel: Brass, nickel plated
·Body: Brass, nickel plated
·Pin: Brass, gold plated
·Spring: SK-5, nickel plated
·Washer: Steel, nickel plated
·Gasket: Rubber, red
·Insulator: Delrin, white
·Washer: Brass, nickel plated
