Electrical Characteristics
Specifications

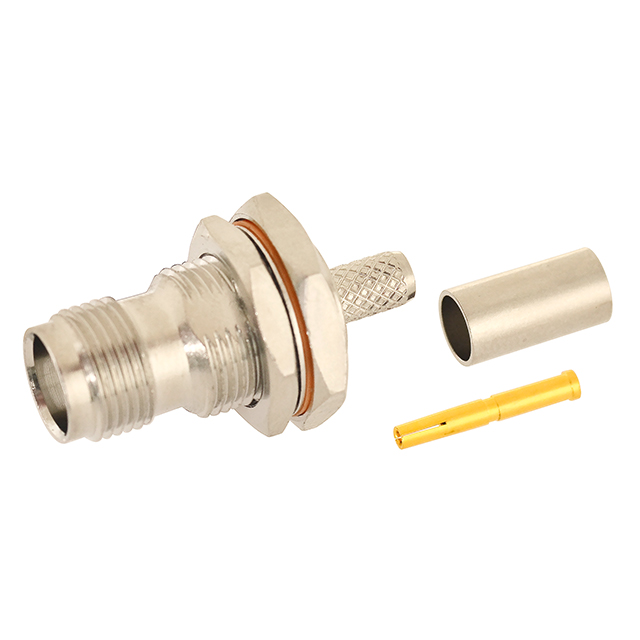

·Gender: Female
·Connector type: TNC
·Impedance: 50Ω
·Body orientation: Straight
·Mouting type: Cable mount
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Insulator: POM, white
·Pin: Brass, gold plated
·Nut: Brass, nickel plated
·Washer: Steel, nickel plated
·Gasket: PVC, orange
·Ring: Brass, nickel plated
