Electrical Characteristics
Specifications
·Gender A: Male
·Gender B: Female

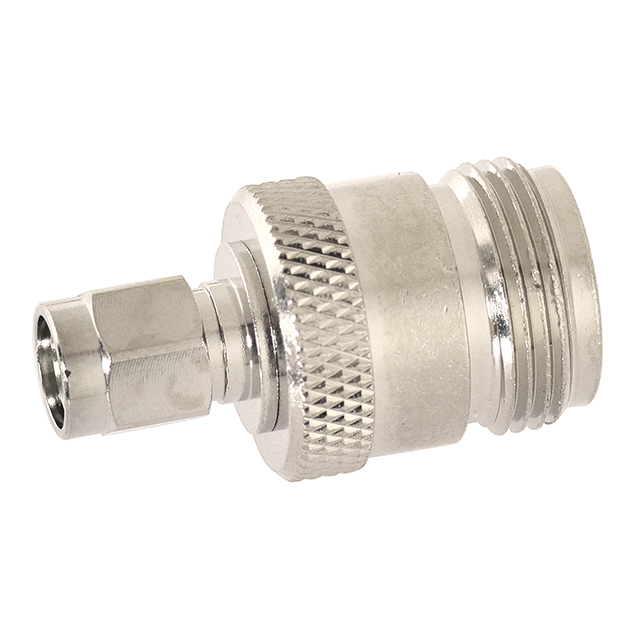

·Adapter type A: Reverse polarity SMA
·Adapter type B: N
·Impedance: 50Ω
·Orientation: Straight
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
Materials
·Insulator: Teflon
·N body: Brass, nickel plated
·SMA body: Brass, nickel plated
·Shell: Brass, nickel plated
·Gasket: Silicone, red
·Inner retaining ring: Stainless
·Pin: Phosphor bronze, gold plated
