Electrical Characteristics

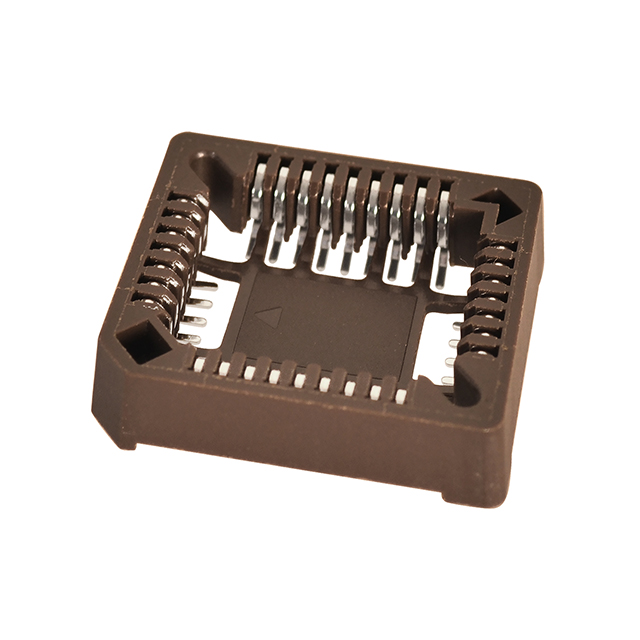

Specifications
·Pitch: 1.27mm
·Gender: Female
·No. of contacts: 32
·Current rating: 1A
·Orientation: Straight
·Termination: Solder
·Contact resistance: 30mΩ Max. at 100mA DC
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operating temperature: -55°C to +105°C
Materials
·Insulator: PPS & 40% glass fiber, UL94V-0
·Contact: Phosphor bronze
