1. Home
  2. Automotive Connectors
Result per page
Total: 57 Products

Product

Product Details
Price
Data Sheet
Remark
Specification
RF automotive right angle mini FAKRA plug type A PCB
60VDC 1A
  • Item No.：N596000
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Male
Power current: 1A DC Max.
Working voltage: 60VDC Max.
Mating cycles: 25 Min.
RF automotive right angle mini FAKRA plug type B PCB
  • Item No.：N596004
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Body orientation: Right angle
Mouting type: Through hole
Impedance: 50Ω
Frequency: DC to 9GHz
Mating cycles: 25 Min.
RF automotive connector stright FAKRA HSD plug PCB
  • Item No.：N596006
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Body orientation: Stright
Mouting type: Through hole
Impedance, differential mode: 100Ω
Frequency: DC to 2GHz
Mating cycles: 25 Min.
RF automotive connector right angle FAKRA HSD plug PCB
  • Item No.：N596010
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Body orientation: Right angle
Mouting type: Through hole
Impedance, differential mode: 100Ω
Frequency: DC to 2GHz
Mating cycles: 25 Min.
RF automotive connector right angle FAKRA HSD plug PCB with 8 additional power pins MQS housing
  • Item No.：N596012
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Body orientation: Right angle
Mouting type: Panel mount
Impedance, differential mode: 100Ω
Frequency: DC to 2GHz
Mating cycles: 25 Min.
Automotive differential connector stright H-CMTD plug PCB 2 signal pins
100V 1.5A
  • Item No.：N596030
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Impedance: 100Ω
Current rating: 1.5A Max.
Voltage rating: 100VAC rms
Contact resistance: 10mΩ Max.
Insulation resistance: 1000MΩ Min.
Mating cycles: 25 insertions
Automotive differential connector right angle H-CMTD plug PCB
2x2 signal pins
  • Item No.：N596034
  • Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Impedance: 100Ω
Current rating: 1.5A Max.
Voltage rating: 100VAC rms
Contact resistance: 10mΩ Max.
Insulation resistance: 1000MΩ Min.
Mating cycles: 25 insertions
2mm Sealed JWPF series automotive plug housing single row 2 position
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Male
Type: Automotive connector
Number of contacts: 2
Number of Rows: 1
Current rating: 3A Max.
2mm Sealed JWPF series automotive receptacle housing single row 2 position
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Female
Pitch: 2.0mm
Number of contacts: 2
Number of Rows: 1
Current rating: 3A Max.
2mm Sealed JWPF series automotive plug housing dual row 8 position
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Male
Pitch: 2.0mm
Number of contacts: 8
Number of Rows: 2
Current rating: 3A Max.
2mm Sealed JWPF series automotive receptacle housing dual row 8 position
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Female
Pitch: 2.0mm
Number of contacts: 8
Number of Rows: 2
Current rating: 3A Max.
Automotive tab contact for using JWPF series 26-22AWG
8K pcs in a reel
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Male
Current rating: 3A Max.
Termination method: Crimp
Applicable wire size: 26AWG ~ 22AWG
2mm sealed JWPF series automotive receptacle contact 26-22AWG
8K pcs in a reel
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Female
Current rating: 3A Max.
Termination method: Crimp
Applicable wire size: 26AWG ~ 22AWG

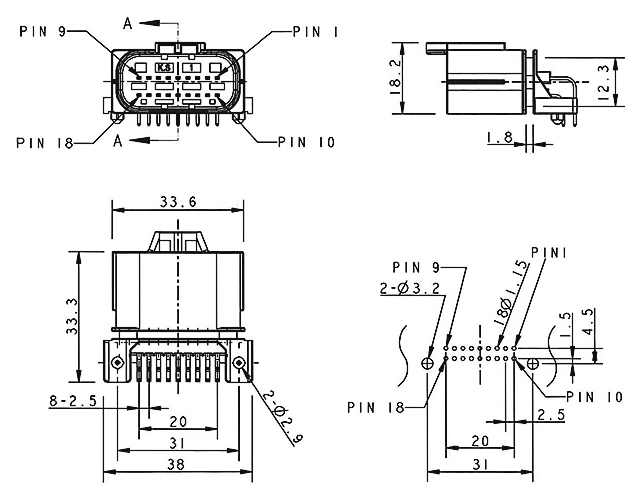

2.5mm Right angle sealed MX23A automotive header 18 way dual row PCB
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Male
Pitch: 2.5mm
Number of contacts: 18
Number of Rows: 2
Body orientation: Right angle

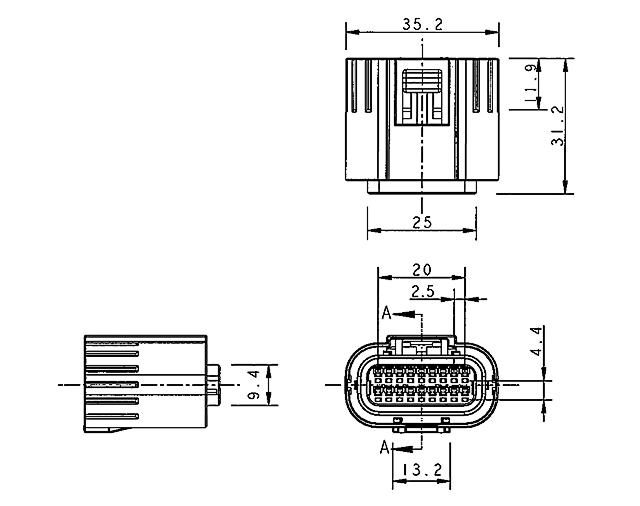

2.5mm Right angle sealed MX23A automotive receptacle 18 way dual row
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Female
Pitch: 2.5mm
Number of contacts: 18
Number of Rows: 2
Termination method: Crimp

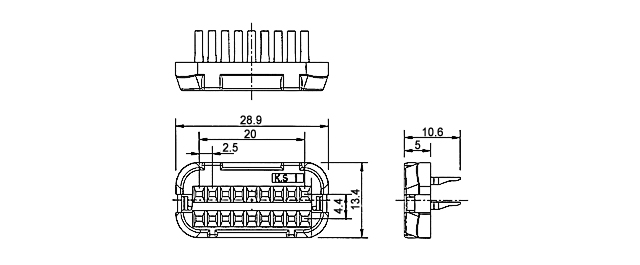

Automotive 18 way dual row front cap for using MX23A series connector
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Pitch: 2.5mm
Number of contacts: 18
Number of Rows: 2
Accessory type: Front cap

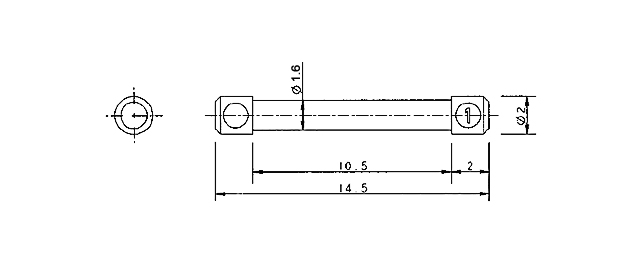

Automotive dummy pin for using MX23A series connector
1K pcs in a bag
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Type: Automotive connector
Series: MX23A series connector
Accessory type: Dummy pin

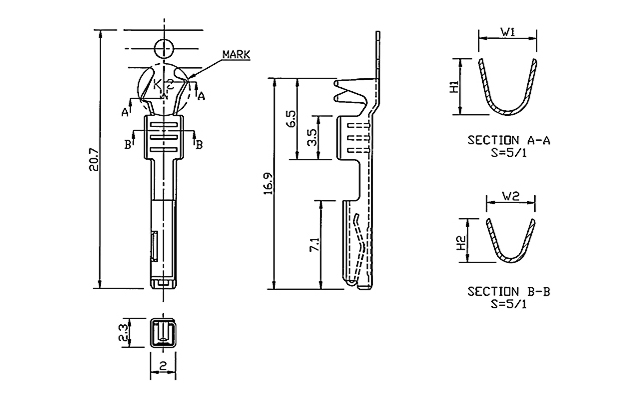

Automotive receptacle contact for using MX23A series 22-20AWG
6K pcs in a reel
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Female
Termination method: Crimp
Applicable wire size: 22AWG ~ 20AWG
5mm Junior power timer (JPT) automotive receptacle 4 way 2 row
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Pitch: 5mm
Gender: Female
Number of contacts: 4
Number of Rows: 2
Body orientatiion: Stright
Automotive female crimp terminal for using Junior power timer 24-22AWG
3K pcs in a reel
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Gender: Female
Current rating: 7A Max.
Voltage drop: 3mV/A
Termination method: Crimp
Applicable wire size: 22AWG ~ 20AWG
